Product Description

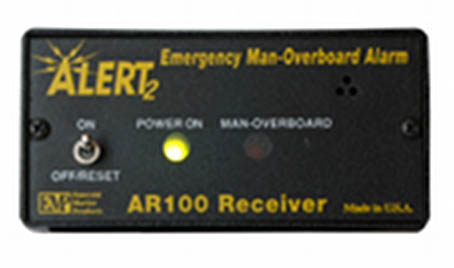

Alert2 Man-Overboard Receiver
by Emerald Marine products
Model # AR100
The Alert2 Man-Overboard Receiver is designed for use with the Alert2 and Alert418 Transmitters.
The Alert2 Man-Overboard Receiver is installed aboard the vessel. When the ALERT2 Receiver picks up an ALERT2 Transmitter signal, an internal siren sounds and a red Man-Overboard light is illuminated. The ALERT2 Receiver also has the ability to be wired so it can shut down the engine, mark a position on a compatible GPS, and sound other alarm systems. An ALERT2 Receiver will support an unlimited number of ALERT2 Transmitters.
The ALERT2 Man-OverboardReceiver can be directly wired to the boats 12-volt wiring system or connected via optional 110-volt power supply (see accessories below).
A utomatic
L ifesaving
E mergency
R adio
T ransmitter
The Alert2 Man-Overboard Alarm System is the right choice for recreational, commercial fishing, workboat, and commercial shipping, when time is of the essence. The ALERT2 Man-Overboard transmitter is water-activated and is designed to alert the vessel that someone just fallen overboard. As the transmission is on the proprietary 418MHz frequency between transmitter and receiver, the transmission of the alarm begins automatically as soon as the device is triggered. There is no wait for manual activation or GPS coordinates. The most successful chance of rescue will occur while time is of the essence, from the boat off of which the individual just fell. The Alert2 Man-Overboard Receiver will respond when activated with an audible alarm and can be interfaced with the GPS / chart plotter and also to an engine-kill switch. If a visual fix on the individual can not be made, the ALERT2 Portable Direction Finder can be used to home in on the ALERT2 Transmitters transmission.
Alert418 Man-Overboard Receiver Video
(New product Release in 2018)
Alert2 Man-Overboard Receiver Features:
-
Can be wired to shut off engine
-
Can be interfaced to GPS / Chart Plotting software
-
A vital addition to any safety plan
Transmitting on the proprietary 418 MHz frequency, the ALERT2 Man-Overboard Receiver must be used with a Alert2 or Alert418 Man-Overboard Transmitter ( sold separately ) to complete the Alert2 Man-Overboard Alarm System.
-
To review the Alert2 Testimonial Video produced by Consol Energy for the Alert2 Man-Overboard Alarm System click here
-
To review the Alert2 Video for Testing Alert2 Man-Overboard Alarm System click here
-
To review the Emerald Marine Manufacturer's Specifications for the Alert2 Man-Overboard Alarm System click here
Specifications:
Dimensions: 4 x 2 x 6
Weight: 12 oz.
Power supply: 12 volt, 100 mA, external
Mounting: Bracket or flush mount
Antenna: 18 whip with 25 ft. coax cable
Internal alarm: 95 dB, front panel mounted.
Remote alarm / GPS: Relay contacts - normally open, 1A max
Engine shutdown: Relay contacts - normally closed, 1A max
Operating temperature: -4°F to 130°F (-20°C to 55°C)
Storage temperature: -40°F to 158°F (-40°C to 70°C)
Operating Frequency: 418 MHz.
Government approvals: FCC (US), IC (Canada).
- Alert2 Man Overboard Receiver
- Mounting Bracket
- Wiring Harness
- 15" Whip Antenna
- 25' Coaxial Antenna Cable
Other related products and configurations designed for use with the Alert2 Man-Overboard Alarm System are listed below. Please Contact Us for configurations, pricing and further details.
Alert2 Man-Overboard Transmitter ( AT101 )
Alert2 Man-Overboard Receiver ( AR100 )
Alert2 Portable Direction Finder ( AF100 )
Alert2 Man-Overboard Transmitter with Spray Pouch (AT102)
Alert2 Man-Overboard Intrinsically Safe (IS) Transmitter (AT201)
Alert2 Man-Overboard Intrinsically Safe (IS) Transmitter with Spray Pouch (AT202)
Alert2 Man-Overboard Transmitter Spray Tight Pouch (AA103)
Alert2 Receiver Wall Power Supply (110VAC to 12VDC) (AA102)
If you have any questions concerning this product, please don't hesitate to contact us.
